Key Features:
~ Up to 10,000 VHS per hour
~ Fast one pass degauss operation
~ Continuous operation
~ Dual V configured coil
~ Wide belt
~ Up to 10,000 units per hour

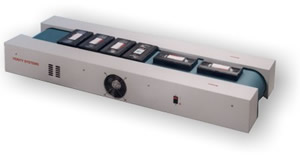

The V890 bulk degausser has been designed by VS Security Products to provide VHS Duplicators with an effective high speed conveyor solution to erasing tape.

For increased production capability, the V890 degausser has been designed with a 7.5" wide belt, enabling VHS cassettes to be erased sideways thus increasing throughput by a massive 1.8 times.

With a conveyor belt of 12 ips this gives an impressive bulk throughput of over 10,000 VHS cassettes per hour. The cassettes are placed onto the moving conveyor belt and carried over two degaussing coils which are oriented at 90 degrees to one another in a ‘V’ formation.

Thermal detection units continuously monitor each degaussing coil turning on the cooling fans to ensure the correct operating temperature for continuous operation 24 hours a day.



SPECIFICATIONS

Media Handling:

Media Erased: Cassettes: VHS, Beta, Betacam,Compact Cassettes: Scotchcart, DAT, 8mm, S-VHS (2pass), U-Matic, (2pass), U-Matic SP (2 pass) Cartridges: 3480 and 3490 Cartridges,TK50, 70 Cartridges,QIC 300/600,1000/2000

Power Supply: 220-250V ac 50Hz; 110-125V ac 60Hz;
Current Rating: 10 Amps typ.
Gauss Force: 2800Oe
Erasure depth: -80dB on VHS
Duty Cycle: Continuous

Belt Width:


7.5" (190.5mm)
Belt Speed: 50Hz 10 ips, 60Hz 12 ips
Dimensions (WxHxD): Height: 6.9" (175mm), Width: 18.1" (460mm), Depth: 48.9" (1,241mm)
Weight: 220lbs (100kg)
Throughput: 10,000 VHS per hour 60Hz, 8,300 VHS per hour 50Hz
Controls: Mains On/Off switch
